As Ireland pushes towards a more sustainable, low-carbon future, energy-efficient building practices like Passivhaus design and EnerPHit retrofitting are gaining significant attention. Passivhaus, originally developed in Germany, focuses on creating buildings with ultra-low energy consumption for heating and cooling, providing high comfort and air quality. When it comes to retrofitting existing buildings, the EnerPHit standard applies Passivhaus principles, making even older homes and buildings meet rigorous energy performance standards. This article explores the principles behind passive house design in Ireland, the challenges of retrofitting to EnerPHit standards, and the benefits of these approaches in the Irish climate and housing market.
What is Passive House Design?
Passive house is a voluntary energy efficiency standard for buildings that prioritizes the reduction of heating and cooling demands through smart design and technology. It aims for optimal thermal performance and indoor air quality with minimal energy input.
Key features of Passivhaus design include:
High levels of insulation: Every element of the building envelope—walls, floors, roof—is highly insulated to minimize heat loss.
Airtightness: A Passivhaus must be airtight to prevent draughts and uncontrolled heat loss. However, this does not mean a lack of ventilation.
Mechanical Ventilation with Heat Recovery (MVHR): This system ensures continuous fresh air flow while recovering most of the heat from the exhaust air, reducing the need for heating.
Elimination of thermal bridges: Thermal bridges (weak spots in the building’s insulation) are minimized to prevent cold spots and heat loss.
High-performance windows and doors: Triple-glazed windows and insulated doors with airtight frames help to retain heat.
Orientation and solar gain: Buildings are designed to optimize solar gain by orienting windows to the south to maximize the sun’s energy for passive heating.
By adhering to these principles, Passivhaus buildings typically use up to 90% less energy for heating compared to traditional buildings, making them exceptionally efficient in Ireland’s climate.
Passivhaus in Ireland: The Growing Demand
The adoption of Passivhaus standards in Ireland has been growing steadily as more architects, homeowners, and policymakers recognize the need for low-energy, sustainable buildings. Ireland’s relatively mild but damp climate presents specific challenges, such as the need for dehumidification and moisture control, but the principles of Passivhaus are well-suited to address these issues.
Several successful Passivhaus projects have been completed across the country, ranging from single-family homes to large apartment buildings. The increasing availability of materials and expertise is also helping to drive costs down, making Passivhaus more accessible.
Retrofitting to EnerPHit Standards: Challenges and Benefits
While Passive house is designed for new builds, EnerPHit is the certification standard for retrofitting older buildings using Passivhaus principles. Retrofitting an older property to EnerPHit standards can be more challenging than building new, but it’s an essential part of Ireland's transition to a low-energy future.
EnerPHit standards allow for slightly more leniency compared to full Passivhaus standards, as it is recognized that achieving complete airtightness and perfect insulation in older structures can be difficult. However, EnerPHit projects still aim to drastically reduce energy demand and carbon emissions while ensuring comfortable living conditions.

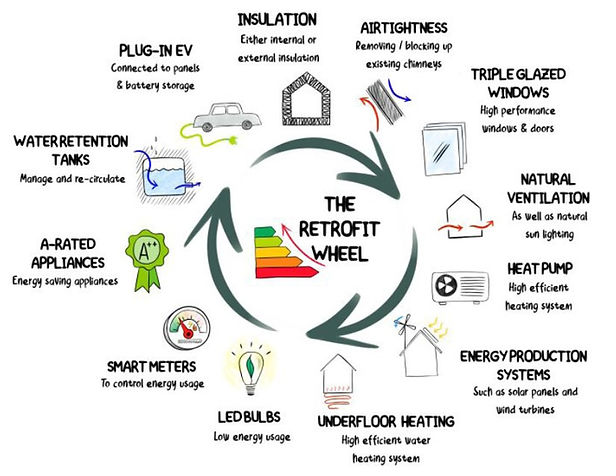

Key Components of an EnerPHit Retrofit:
Improving Insulation: Similar to new Passivhaus buildings, retrofitted homes need high levels of insulation in walls, roofs, and floors. However, existing construction materials and limitations of space often require creative solutions like external wall insulation or internal drylining.
Upgrading Windows and Doors: Installing high-performance, airtight windows and doors is essential in reducing heat loss. Triple-glazing is often used in EnerPHit projects to maintain thermal performance.
Air Tightness: Achieving air tightness in a retrofit can be tricky, especially with older homes where walls, floors, and ceilings may not align perfectly. Specialized tapes and membranes can help improve air tightness, but EnerPHit allows for a slightly higher air leakage rate compared to new Passivhaus buildings.
Ventilation: Similar to Passivhaus, an EnerPHit retrofit requires a mechanical ventilation system with heat recovery (MVHR) to ensure fresh air circulation without compromising heat retention. Proper ventilation is crucial to prevent dampness and mold in Ireland’s humid climate.
Thermal Bridging: Minimizing thermal bridging is important but often harder in retrofits, especially in older masonry buildings. However, EnerPHit encourages the use of advanced materials and design strategies to address this as much as possible.
Renewable Energy Integration: Where possible, retrofits to EnerPHit standards may include renewable energy systems, such as photovoltaic solar panels, to further reduce reliance on fossil fuels.
Challenges of EnerPHit Retrofitting in Ireland
Older Housing Stock: Ireland has many older homes, including stone cottages and terraced houses, where retrofitting to EnerPHit standards can be structurally and technically challenging. These homes were not built with energy efficiency in mind, so substantial upgrades may be needed.
Cost: Retrofitting to EnerPHit standards is often more expensive upfront compared to standard energy retrofits. Achieving the required insulation and air tightness levels can require significant investment in specialized materials and technologies.
Heritage Buildings: In cases where buildings are protected for heritage reasons, making significant structural changes can be restricted, limiting the scope of a retrofit.
Benefits of EnerPHit Retrofits
Energy Savings: Homes retrofitted to EnerPHit standards typically see a reduction of up to 75% in energy demand for heating, resulting in lower energy bills and a reduced carbon footprint.
Improved Comfort: EnerPHit homes maintain a consistent indoor temperature year-round, with no drafts or cold spots. This results in higher levels of thermal comfort.
Sustainability: EnerPHit retrofits align with Ireland’s broader climate goals by significantly reducing the carbon emissions of older homes. These retrofits are a key step in Ireland’s journey to carbon neutrality by 2050.
Increased Property Value: Homes retrofitted to high energy efficiency standards tend to have higher resale values, as buyers are increasingly interested in energy savings and sustainable living.
SEAI Grants and Financial Support for Retrofitting
The Irish government, through the Sustainable Energy Authority of Ireland (SEAI), offers a range of grants and incentives to support homeowners in improving the energy efficiency of their homes. For those looking to undertake deep retrofits to achieve EnerPHit standards, the One-Stop-Shop service offers comprehensive support, from assessment to grant management.
Grants cover a wide range of retrofitting measures, including insulation, window replacement, heating system upgrades, and ventilation systems. For those seeking to achieve the highest levels of efficiency, the deep retrofit grants can help make EnerPHit retrofits more affordable.
Conclusion: Passive House and EnerPHit as Ireland’s Energy Future
Passive House design and EnerPHit retrofitting represent two important pathways toward achieving a more energy-efficient and sustainable built environment in Ireland. While Passivhaus is ideal for new builds, retrofitting older homes to EnerPHit standards allows existing buildings to meet high-performance criteria, drastically reducing energy consumption and improving living conditions.
Despite the challenges—especially in terms of cost and technical feasibility—adopting these standards will have long-term benefits for homeowners, the environment, and Ireland’s energy security. As Ireland continues to push towards carbon neutrality, Passivhaus and EnerPHit are likely to play a critical role in reshaping the country’s housing stock into one that is fit for a low-energy future.
